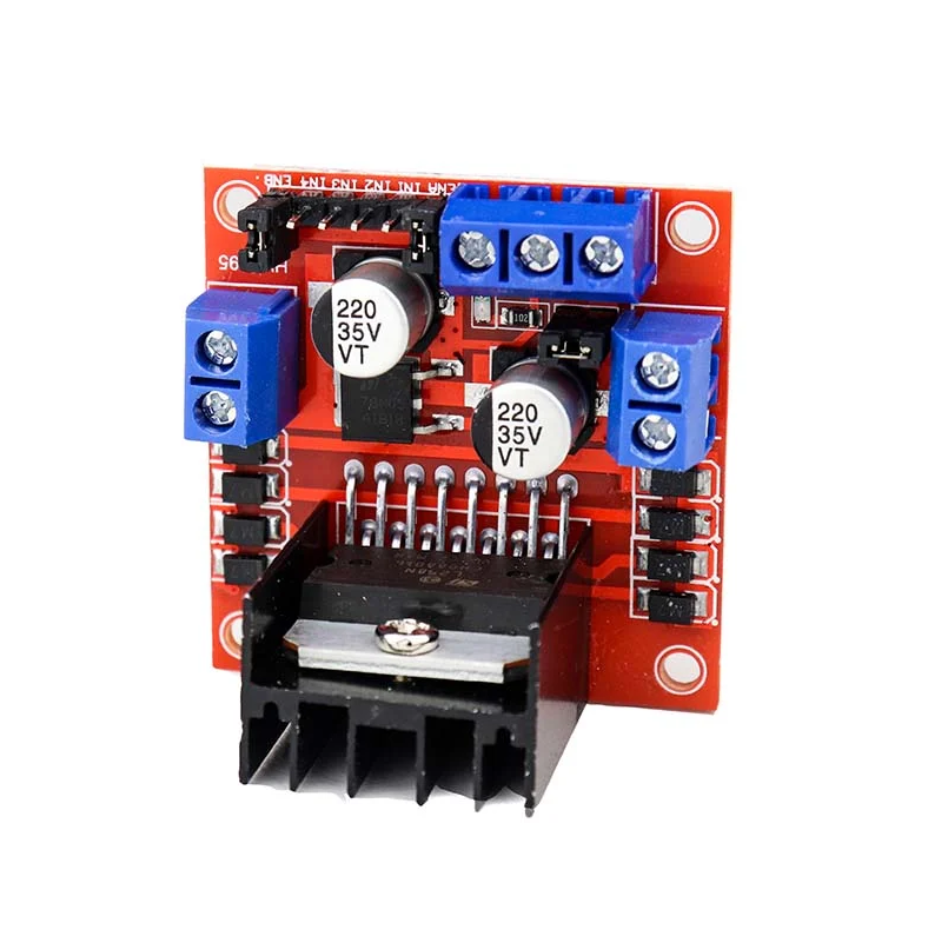

L298N 2A Based Motor Driver Module

L298N 2A Based Motor Driver is a high power motor driver perfect for driving DC Motors and Stepper Motors

It uses the popular L298 motor driver IC and has an onboard 5V regulator which it can supply to an external circuit. It can control up to 4 DC motors, or 2 DC motors with directional and speed control.

This motor driver is perfect for robotics and mechatronics projects and perfect for controlling motors from microcontrollers, switches, relays, etc. Perfect for driving DC and Stepper motors for micro mouse, line following robots, robot arms, etc.

Pins Details

Out 1: Motor A lead out
Out 2: Motor A lead out
Out 3: Motor B lead out
Out 4: Mo (Can actually be from 5v-35v, just marked as 12v)
GND: Ground
5v: 5v input (unnecessary if your power source is 7v-35v, if the power source is 7v-35v then it can act as a 5v out)
EnA: Enables PWM signal for Motor A (Please see the “Arduino Sketch Considerations” section)
In1: Enable Motor A
In2: Enable Motor A
In3: Enable Motor B
In4: Enable Motor B
EnB: Enables PWM signal for Motor B (Please see the “Arduino Sketch Considerations” section)

Features:

\n
1. Maximum motor supply current: 2A per motor.
\n
2. Current Sense for each motor.
\n
3. Heatsink for better performance.
\n
4. Power-On LED indicator.
\n
5. Double H bridge Drive Chip: L298N.
\n

Package Includes :

1 x L298N 2A Based Motor Driver Module
