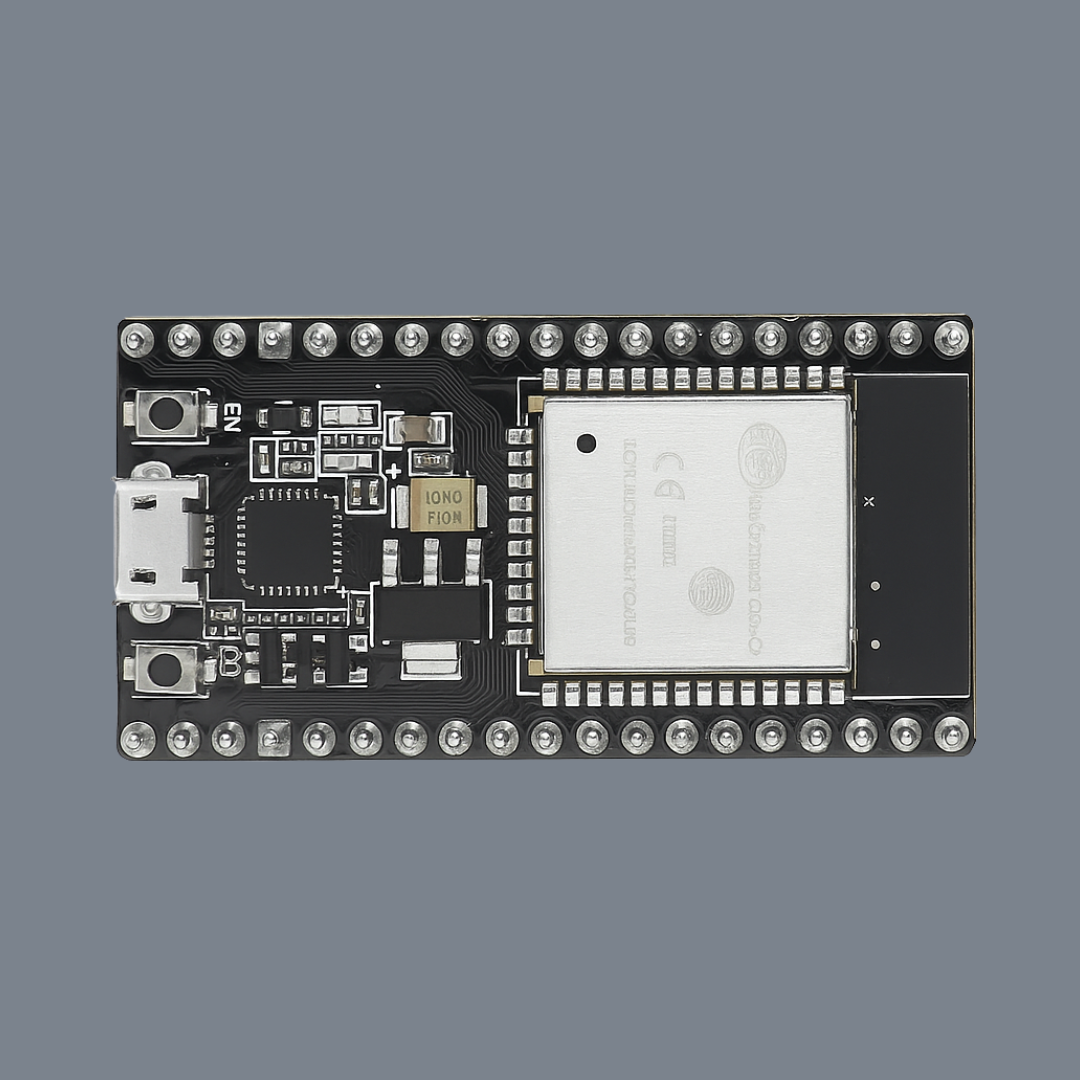

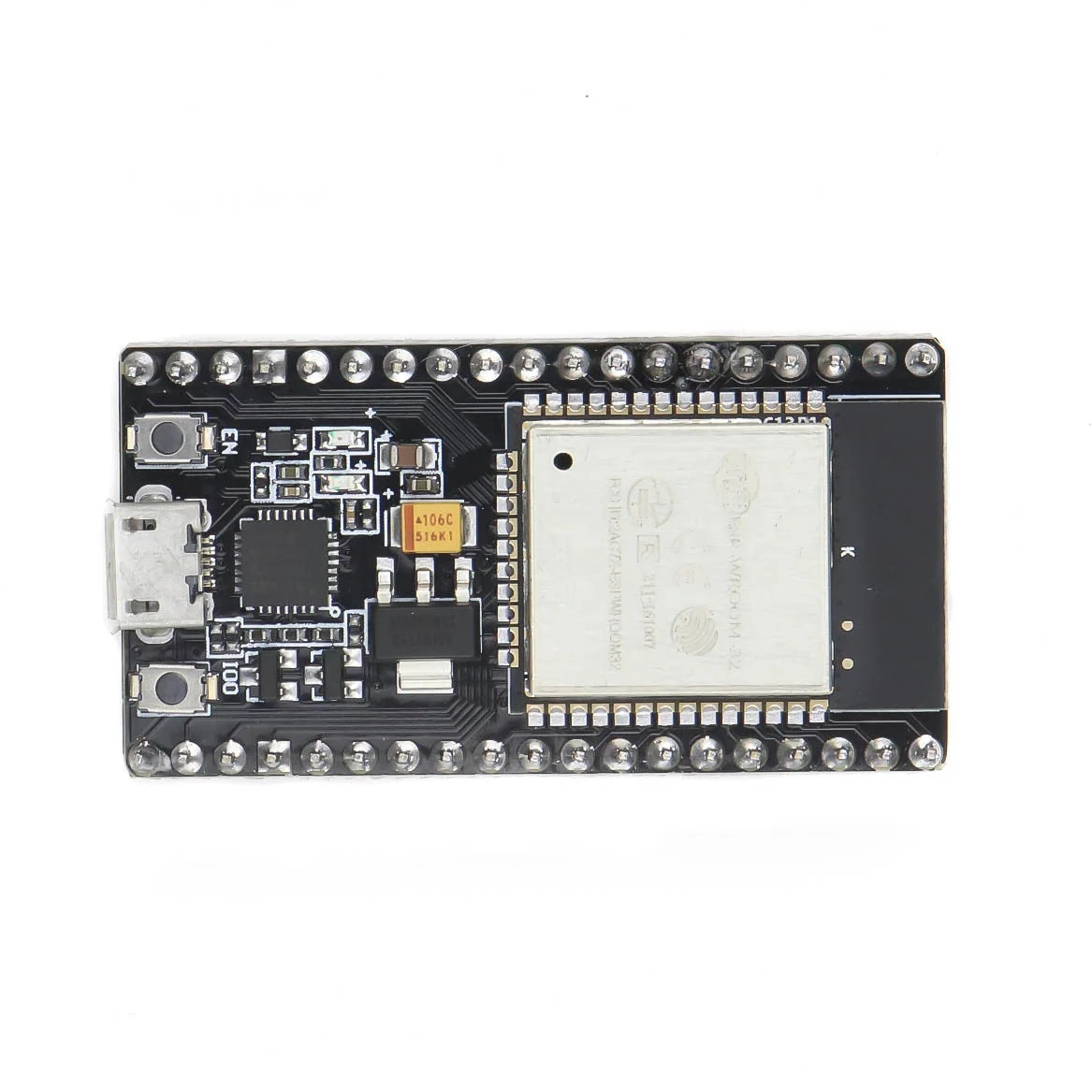

Esp 32 WROOM MCU Module

Features of the ESP32 include the following:

• Processors:

• CPU: Xtensa dual-core (or single-core) 32-bit LX6 microprocessor, operating at 160 or 240 MHz and performing at up to 600 DMIPS

• Ultra low power (ULP) co-processor

• Memory: 520 KiB RAM, 448 KiB ROM

• Wireless connectivity:

• Wi-Fi: 802.11 b/g/n

• Bluetooth: v4.2 BR/EDR and BLE (shares the radio with Wi-Fi)

• Peripheral interfaces:

• 34 × programmable GPIOs

• 12-bit SAR ADC up to 18 channels

• 2 × 8-bit DACs

• 10 × touch sensors (capacitive sensing GPIOs)

• 4 × SPI

• 2 × I²S interfaces

• 2 × I²C interfaces

• 3 × UART

• SD/SDIO/CE-ATA/MMC/eMMC host controller

• SDIO/SPI slave controller

• Ethernet MAC interface with dedicated DMA and planned IEEE 1588 Precision Time Protocol support

• CAN bus 2.0

• Infrared remote controller (TX/RX, up to 8 channels)

• Pulse counter (capable of full quadrature decoding)

• Motor PWM

• LED PWM (up to 16 channels)
•

• Ultra low power analog pre-amplifier
• \n
• Security:
• \n
• IEEE 802.11 standard security features all supported, including WPA, WPA2, WPA3 (depending on the version)and WLAN Authentication and Privacy Infrastructure (WAPI)
• \n
• Secure boot
• \n
• Flash encryption
• \n
• 1024-bit OTP, up to 768-bit for customers
• \n
• Cryptographic hardware acceleration: AES, SHA-2, RSA, elliptic curve cryptography (ECC), random number generator (RNG)
• \n
• Power management:
• \n
• Internal low-dropout regulator
• \n
• Individual power domain for RTC
• \n
• 5 μA deep sleep current
• \n
• Wake up from GPIO interrupt, timer, ADC measurements, capacitive touch sensor interrupt
• \n
