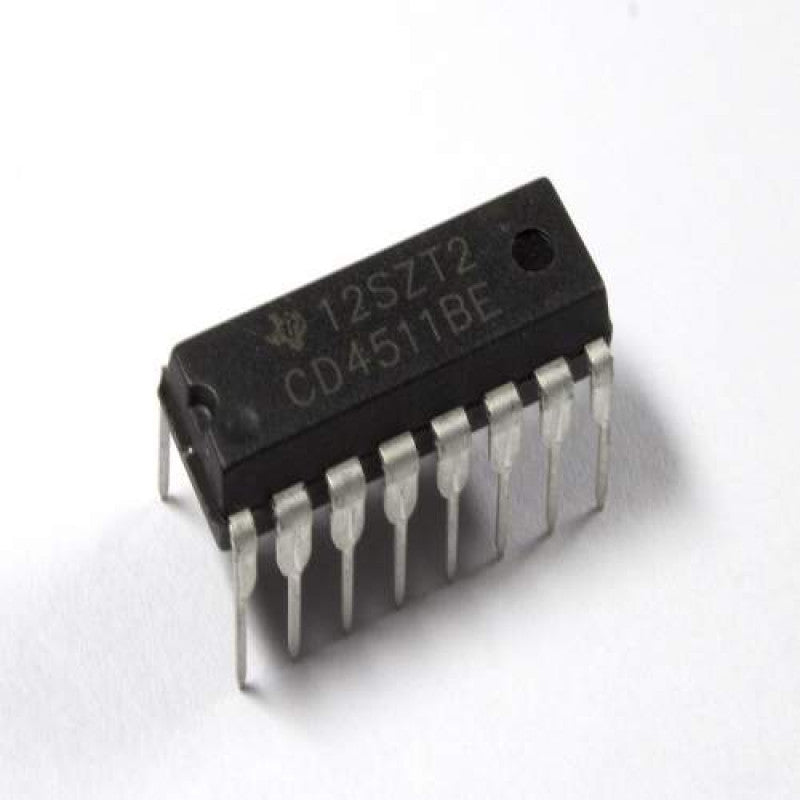

CD4511 BCD to 7-Segment Display Driver IC

CD4511 BCD to 7-Segment Display Driver IC

Regular price Rs. 25.00
Regular price Sale price Rs. 25.00
Sale Sold out

CD4511 ICs are BCD to 7-segment latch decoder drivers constructed with CMOS logic and n-p-n bipolar transistor devices based on single monolithic structure. These devices combine the low quiescent power dissipation and high noise immunity features of RCA CMOS with npn bipolar transistors capable of sourcing up to 25mA. This capability allows the CD4511 types to drive LEDs and other displays directly

\n

\n

CD511 IC Features:

\n
    \n
  1. High output sourcing capability... up to 25mA
  2. \n
  3. Input latches for BCD Code Storage
  4. \n
  5. Lamp test and Blanking Capability
  6. \n
  7. 7-segment outputs blanked for BCD Input Codes
  8. \n
  9. Tested for quiescent current at 20V
  10. \n
  11. Available in 16-pin DIP package
